MANTAR BAŞLI CIVATA DIN 603 - Özel Ürünler

Aşağıdaki formu doldurarak sizinle iletişime geçmemizi sağlayabilirsiniz.

veya

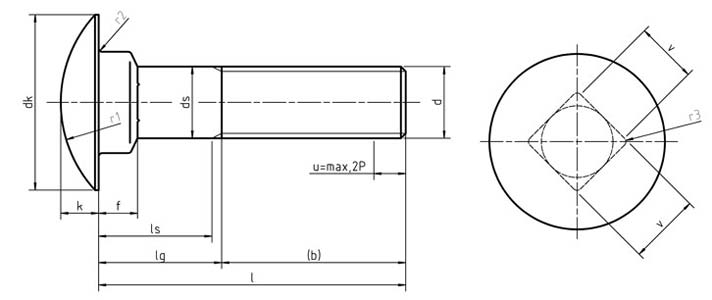

Dimensions for CSN 21319 - Mushroom head square neck bolts

Thread d	p	b			dk		ds		f		k		r1	r2	r3	v
Thread d	p	l ? 125mm	125 < l ? 200mm	l > 200mm	max	min	max	min	max	min	max	min	approx	max	max	max	min
M5	0.8	16	22	-	13.55	12.45	5	4.52	4.1	2.9	3.3	2.7	10.7	0.5	0.75	5.48	4.52
M6	1	18	24	-	16.55	15.45	6	5.52	4.6	3.4	3.88	3.12	12.6	0.5	0.9	6.48	5.52
M8	1.25	22	28	41	20.65	19.35	8	7.42	5.6	4.4	4.88	4.12	16	0.5	1.2	8.58	7.42
M10	1.5	26	32	45	24.65	23.35	10	9.42	6.6	5.4	5.38	4.62	19.2	0.5	1.5	10.58	9.42
M12	1.75	30	36	49	30.65	29.35	12	11.3	8.75	7.25	6.95	6.05	24.1	1	1.8	12.7	11.3
M16	2	38	44	57	38.8	37.2	16	15.3	12.9	11.1	8.95	8.05	29.3	1	2.4	16.7	15.3
M20	2.5	46	52	65	46.8	45.2	20	19.16	15.9	14.1	11.05	9.95	33.9	1	3	20.84	19.16
